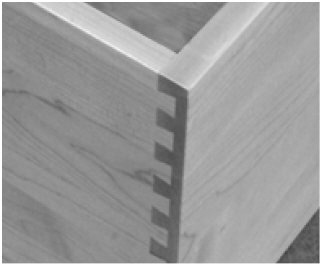

DOVETAIL
DRAWER BOXES
*Drawer Boxes are done by quote
only, please use our forms.
Online: Molding/Drawer
Box/Veneer etc. or
Fax: Molding/Drawer Box/Veneer Form

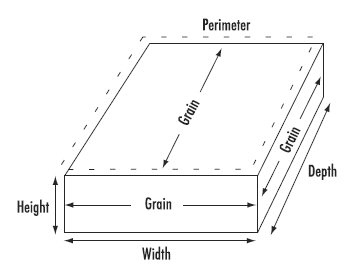

When measuring Drawer Boxes, figure the width at 1 " less than the
opening for most standard side mount guides.
(3/8" less for Blum Full Extension and Blumotion.)
Figure the height at 3/4" less than then the opening.
(1" for Blum Full Extension and Blumotion.)
Standard Drawer Box Depths: 21" & 18"
Please use standard depths whenever possible.
Enter in the exact drawer box sizes on the form.

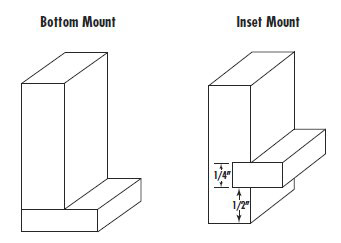

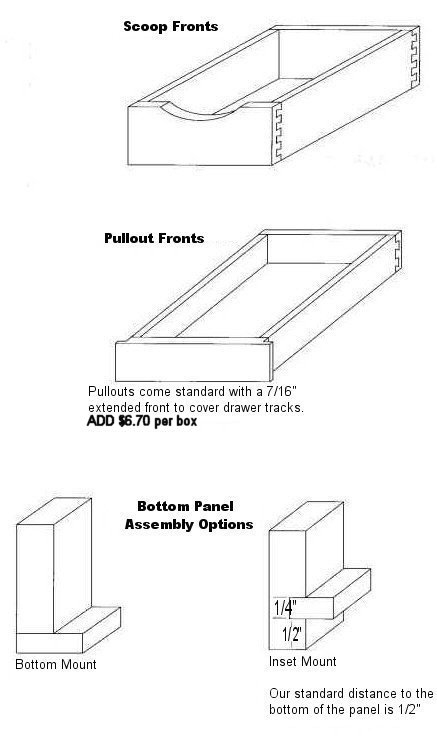

Bottom Panels can be done at 1/4", 3/8" or 1/2" thickness.
They can be made inset at 1/2" up from the bottom or done as a bottom mount.
Quotes
can be done for assembled or
un-assembled drawer boxes.
Depending on the quantity and size of the order, you may have to order the boxes
un-assembled in order to ship them by UPS. Otherwise, will ship by Freight Truck
YOU MUST SUPPLY US WITH THE ACTUAL DRAWER SIZES
These Drawer Boxes are Solid Wood, 5/8" Thick.
|
Poplar is our standard wood specie for our Drawer Boxes
Bottom Panel Material: Birch (standard)
for lighter wood specie,
Darker Specie we do have matching panels as well as White Melamine.
|
|
*Add $2.60 per box for Standard Hand Pulls
Assembly of Drawer Box: $7.25 each box
Pre-finishing of Drawer Box: $8.30 each box
Pre-Finished drawer boxes will be pre-finished with 2 coats of catalyzed
varnish.
Add $5.70 per box if melamine bottoms are used. |
| Drawer
Specs: |
Drawer Boxes are done by quote only, please see our forms above.
Drawer Box Minimum Sizes: Width - 4 1/2"
Depth - 5" Height - 2"
Drawer Box Maximum Sizes: Width - 48" Depth -
48" Height - 12"
Standard Drawer Box Depths: 21" & 18"
Please use standard depths whenever possible.
|
DRAWER GUIDES:
When measuring your Drawer Boxes for Blum Guides
shown below measure your boxes at 3/8" smaller then the opening for
width and 1" smaller for the height.
9/16" clearance is required at the bottom of the box. Side mounting
requires blocking to be installed flush with the edge of the face
frame. Rear mount requires between 7/8" and 2-3/8" of clearance behind
the drawer guide. |
|
7/8 Ext |
9" |
12" |
15" |
18" |
21" |
|
#562 BLUM ™ Tandem Full Extension |
NA |
$19.81 |
$19.81 |
$19.99 |
$20.71 |
|
#562 BLUM™ Motion Full Extension |
NA |
$26.95 |
$26.95 |
$27.13 |
$27.85 |
BLUM™ Standard Locking Device, #T51.1700.04 Left&Right
***These items are required for both #562 items shown above. |
$2.78 Pair |
|
BLUM™ Top Mount Kit |
$5.80ea |
|
BLUM™ Rear Mount Kit |
$.88 Pair |
|

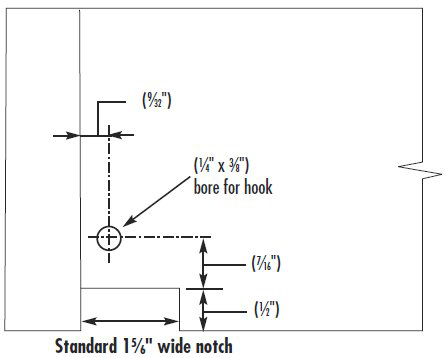

Width of Notch |
1" - 2" |
2" - 4" + |
|
Price |
$3.25 |
$4.95 |
|
