MITRED DOORS

MITERED DOORS AND DRAWER FRONTS

Some wood specie other than Red Oak, Hard Maple and Cherry may have set-up charge unless there are 12 or more doors on the order.
Corners are glued together using a blind mortise and tenon joint

Ordering Information:
1. MR-10, MR-20, MR-30, MR-40 and MR-50 can use any outside edge profile except: E-102, E-103, E-107, E-108, E-113, & E-116.

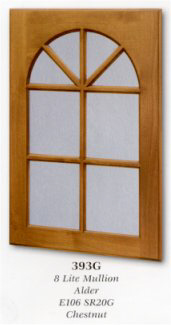

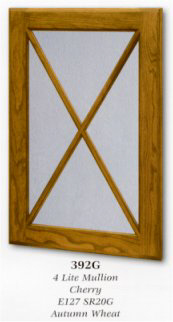

2. Mitered doors can be ordered open for glass with or without mullions. Please specify a “G” for glass or a “WG” for mullions.
Note: Mullions will be shipped loose and must be held behind
the glass on MR-40, MR-50, MR-362, MR-364 and MR-360.
All done with backs squared out for glass only.
3. Center rails cannot be used on MR-40, MR-50, and MR-360.
4. Mitered doors will expand and contract in response to the environmental conditions. Our doors are made with a gap tolerance of up to .010 on the inside corner to allow for this expansion and contraction Mitered doors will not be warranted against joint separation that occurs due to high or low humidity conditions.
5. A painted finish is not recommended on mitered doors.

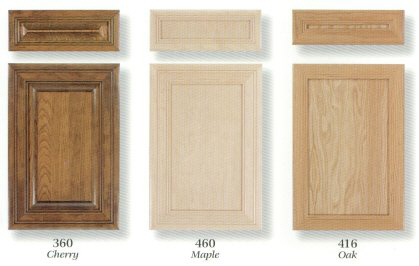

360 Cherry	460 Maple	416 Red Oak

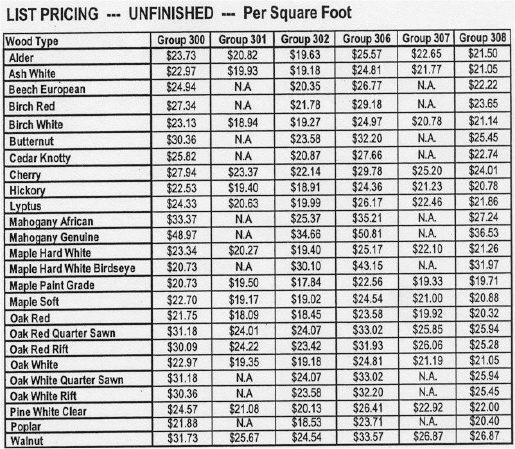

All doors shown are available in any wood specie shown below in the pricing table. Use color code to figure sq. ft. prices shown in table below All available Un-Finished or Pre-finished in any of our colors See: Colors For Finished Doors

#DF-316

Minimum Size:
7 3/8" x 7 3/8"

Color Code:
RED

#DF-416

Minimum Size:
5 1/2" x 5 1/2"

Color Code:
SILVER

#DF-360

Minimum Size:
6 1/2" x 6 1/2"

Color Code:
RED

#DF-460

Minimum Size:
4" x 4"

Color Code:
SILVER

#316

Minimum Size:
7 3/8" x 7 3/8"

Color Code:
RED

#416

Minimum Size:
5 1/2" x 5 1/2"

Color Code:
SILVER

#360

7/16" Deep
Hinge Bore Only

Minimum Size:
8 7/8" x 8 7/8"

Color Code:
BLUE

#460

7/16" Deep
Hinge Bore Only

Minimum Size:
7" x 7"

Color Code:
BLACK

#DF-362

Minimum Size:
6 1/2" x 6 1/2"

Color Code:
RED

#DF-462

Minimum Size:
4" x 4"

Color Code:
SILVER

#DF-363

Minimum Size:
6 1/2" x 6 1/2"

Color Code:
RED

#DF-463

Minimum Size:
4" x 4"

Color Code:
SILVER

#362

Minimum Size:
7 7/8" x 7 7/8"

Color Code:
PURPLE

#462

Minimum Size:
7 1/4" x 7 1/4"

Color Code:
GREEN

#363

Minimum Size:
8 7/8" x 8 7/8"

Color Code:
RED

#463

Minimum Size:
7 1/4" x 7 1/4"

Color Code:
SILVER

#364

Minimum Size:
8 7/8" x 8 7/8"

Color Code:
BLUE

#DF-364

Minimum Size:
6 1/2" x 6 1/2"

Color Code:
RED

#464

Minimum Size:
7" x 7"

Color Code:
BLACK

#DF-464

Minimum Size:
4" x 4"

Color Code:
SILVER

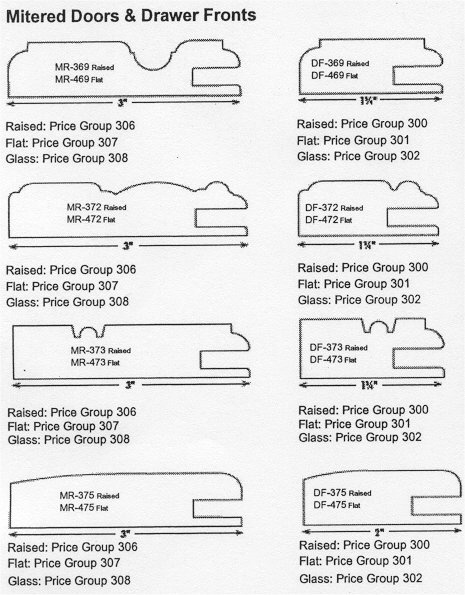

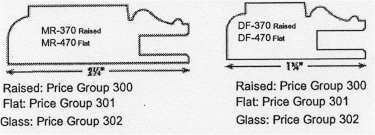

MITERED DOORS AND DRAWER FRONT SIDE VIEW PROFILES

MR-10

2-1/4" x 3/4"

MR-20

2-1/4" x 3/4"

MR-30 RP

2-1/4" x 3/4"

MR-30 FP

2-1/4" x 3/4"

MR-40

2-1/4" x 3/4"

MR-50

2-1/4" x 3/4"

MR-360 RP
MR-460 FP

3" x 3/4"
7/16" Deep
Hinge Bore Only

DF-360 RP
DF-460 FP

1-3/4" x 3/4"

MR-363 RP
MR-463 FP

2-1/4" x 3/4"

DF-363 RP
DF-463 FP

1-3/4" x 3/4"

MR-362 RP
MR-462 FP

2-1/2" x 3/4"

DF-362 RP
DF-462 FP

1-3/4" x 3/4"

MR-364 RP
MR-464 FP

3" x 3/4"

DF-364 RP
DF-464 FP

1-3/4" x 3/4"

RP = Raised Panel & FP = Flat Panel

*Quote Only

How To Calculate Cost For Mitered Doors and Fronts:
*Note: Send us your info for extra discounts and quick quotes. Use one of our forms:
*Use our online form: Door Quote/Order Form Or our fax in form: Door Quote/Order Form
*For more information on how to Calculate Cost and Measuring: CLICK HERE
*Measurements are rounded to the next highest inch.
*Round all calculations to the next highest hundredth. (1 sq. ft. minimum per door, 1/2 sq. ft. for fronts)

HOW TO PRICE:
1. Measure your door, Length x Height in inches.
2. Divide by 144, = Square Footage.
3. Multiply the Square Footage by the cost for the type of wood you need.
(Door Cost is shown above in the pricing table, use the color code for your door style.)
4. All prices are for 12 or more doors. 4 or less add 35%, 11 or less add 20%.
5. Also add in extras such as:

Finishing with Clear-coat:                               $6.85 / sq. ft. (See Colors For Finished Doors)
Finishing with Paint:                                         $12.45 / sq. ft.
5/4 Thick                                                                 add 25% to wood cost
5/4" = (1" Finish Thickness, E-104 edge only)-(Red Oak, Maple & Cherry Only)
Premium Grade Lumber                                      add 20% to un-finished cost

All other products have price tables and instructions located in each product section.

Pricing is subject to change without notice.
