VIRUTEX TOOLS
Price List
VENEERING TOOLS, HAND
POWER PLANERS and More
---State of the art tools
and supplies---
Price List
IF YOU ARE ORDERING MULTIPLE PIECES, PLEASE TRY TO ORDER IN
CASE QUANTITIES SHOWN TO AVOID BACK ORDERED ITEMS
THERE IS NO MINIMUM UNLESS INDICATED.
AU-93 DOUBLE EDGE TRIMMER $20.00ea
*Case quantities of 6*Case
quantities of 6 (not required)
AU-93-B AU-93 BLADES
$12.00ea
(replaces the blades once in the tool)
*Case quantities of 6*Case
quantities of 6 (not required)
(Trim edgebanding and veneer
edges with ease)
(This tool comes apart for one side trimming also,
this works better when working with wood veneers when tear-out occurs because
you can then choose the direction of the cut. You want to flow over wood-grain
pattern rather than cutting into the wood-grain pattern)
The
arrow indicates the correct cutting direction.
____________________________________________
- Edge Trimmer
Follow same directions above for ET-6 & ET-7-
ET6 16.00ea
For straight panels
*Case
quantities of 6
(not required)
- Blades:
$10.50ea
*Case quantities of 6
(not required)
(replaces the blades once in the tool)
-
-
- Edge Trimmer
- ET7 $16.00ea *Case
quantities of 6
(not required) (no blades available)
- For curved panels
____________________________________________________________________
RC21E END TRIMMER
$42.75ea *Case quantities of 4
(not required)
Perfect
end cuts on edgebanding
RC21E-B BLADES FOR END TRIMMER
$19.00ea *Case
quantities of 4
(not required)
(replaces the blades once in
the tool) ______________________________________________________________
IMPROVED!!!
CO15L Laminate Slitter: $149.18ea
(Replaced CO15E)
Our new micro metric fence adjustor will
assure you a very precise positioning up to 4-1/4" width.
It will also lock the fence into a very tight position. Any pressure from the
operator will not move the fence out of adjustment.
Cuts
strips of plastic laminate or veneer
C015L-B BLADES FOR C015L $33.32ea
(replaces the blades once in the tool)
TK-78 MOUNTING STAND FOR C015L $56.40ea
________________________________________________________________________

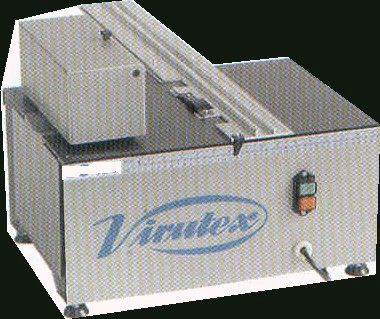

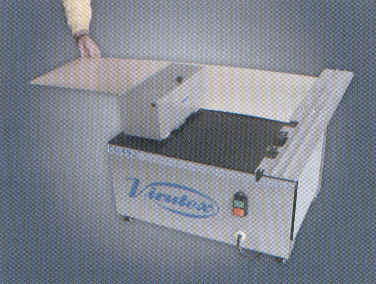

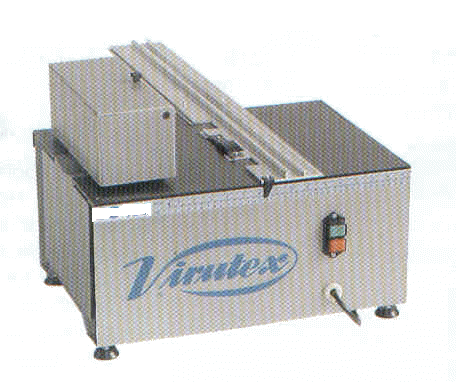

CO49K MOTORIZED
SLITTER, 25" capacity: $Call
for Quote
+
shipping ( $150.00 / $180.00 West Coast )
- - Cutting width: 3/8" to 25"
- ( no width limit on 4'x8' sheets)
- - Cutting thickness : 0 - 3/32"
- - Speed : 32 Feet per minute
- - 110 Volts
-
-
-
-
-
-
- - Weight: 40 Pounds net weight. Packed in a wooden crate
- - Easy to work with
- - Easy to maintain
- - Easy to change the cutter wheels
- Automatic production laminate and veneer slitter.
- Final cut, accurate, precise, no splinter, inlaid quality edges. No
additional work required. No material waste
Cut strips of plastic laminate or veneer with ease
(no saw kerf for no
more waist)
________________________________________________________________________
U-78 LAMINATE-VENEER MITER CUTTER
$396.00ea
SEE THIS TOOL IN ACTION
Upper Blade for VX-U78
$31.88
Lower Blade for VX-U78
$31.88
Does perfect 90 deg. end cuts on plastic laminates or veneers
up to 5-1/2" in Width
(Great for cabinet
re-facing)
Can do angle cuts also, be creative!!!
_________________________________________________________________________
|
AG-98F HAND HELD PORTABLE EDGEBANDER
|
|
CLICK TO SEE
THIS TOOL IN ACTION
AG-98F HAND HELD PORTABLE EDGEBANDER
$408.00
|
Double Edge Trimmer and End Trimmer also pictured
but not included
Manual Hand-Held
Edgebander - AG98F
-
Adjustable rubber
clamps hug the board
& provide
accurate tracking of tape on the board
-
Most accurate
edgebander in its price range
- For pre-glued
PVC, Polyester, Melamine, and wood veneer of
- up to 2" wide (50
mm)
- A set of rubber clamps hug
the board so
you can get the most accurate tracking of
the tape on the board.
- Easy to adjust.
- Easy application on contour
edge banding.
- Minimum interior radius: 2"
- 2 step temp. switch:
- Step 1: 300º C or 570 Fº
|
_________________________________________________________________________
- Biscuit Joiner
- Model: AB11
$497.00ea
 SEE THIS TOOL IN
ACTION
Designed for
grooving panels easily & accurately.
The front fence can be adjusted for angle
and height and makes it easy
for miter, center or butt joining.
It includes a strong carrying case.
- Double insulation, 110V.,
650 W.
- No load speed of 10,000
RPM.
- Milling blade: 100x22x4 mm.
- Max. slot depth 20 mm.
- Weight: 3.2 Kg.
- Spare blade
set: AB11B
$78.00ea
-
- Biscuit / Splines:
Virutex brand :
Virutex brand 1,000
pieces per box
No. 0: 47x15x4 mm slot depth:
8 mm
No.10: 53x19x4 mm slot depth:
10 mm
No. 20: 56x23x4 mm slot depth: 12 mm
Items #0 #10 #20
$49.50 per box of 1,000
________________________________________________________________________
- Hand Iron HI165
For pre-glued edge banding tape. Not
PVC
- Cost: $65.80 ea
_______________________________________________________________
Virutex Water Based Glue Spreaders
EM-25D GLUER, WITH TOP ROLLER ALSO $193.38ea
(EM25D is equipped with
top roller that allows you to roll your stock over the top for fast gluing)
____________________________________________________________________________
- Edge Lipping Planer
-
Model: AP98: $654.00ea  SEE THIS TOOL IN ACTION
For precision flush
planning of edges up to 2.25" (55mm)
Solid Surface, Hardwood, Softwood,
Laminates & PVC Edges
Includes
a set of Carbide reversible self indexing blades that requires no adjustments.
Continuous cutting depth adjustment with no minimum increment allows you to do precision
flush trimming.
Non-scratch Teflon coated base slides on the work surface.
The blades is positioned by a guide from the edge,
and cuts only up to the width of the tape.
Height adjustment is made by moving the base up or down,
with no minimum increment, therefore creating a complete flush finish. Easy to use.
1/8"(3 mm) removal rate. Strong and sturdy, 17 Pounds (7.7 Kg)
1.4 HP, 1050 W, 11,100 RPM, 110 V.
Perfect tool for small shop who apply thick edges and do not have large edgebanders.
Blades for AP98 $31.00
____________________________________________________________________________
- *SEE OUR ALL NEW ABRASIVE POWER PLANERS:
CLICK HERE:
Power
Planers & Shapers
-
Powered Compass
Curve Planer
Model: CE96H-
$525.00ea  SEE THIS TOOL IN
ACTION
Professional planer with
adjustable sole for convex and concave planning. Includes a
set of reversible, self indexing Carbide blades. Cutting width : 3" (80 mm),
cutting depth: up to 1/8" (0-3 mm) Concave minimum radius: 18" (450 mm)
Convex minimum radius: 16" (400 mm) 7 Pound (3.2 Kg), 700 W., 110 V.,
light weight and yet high speed of 16,500 rpm no load, double insulation.
Standard items; reversible carbide blades, lateral fence, dust collection outlet.
Ideal for ship yards, home builders / framers, furniture makers
___________________________________________________________________________
- Large Planer For Heavy Duty Work
- Model: CE24E-
$510.00ea
 SEE THIS TOOL IN
ACTION
-
- Large, sturdy planer for heavy duty
work:
- - 3/14" wide cut ( 80 mm)
- - 18" long, one piece
cast Aluminum Housing
- makes it strong, and yet easy to work
with
- - Cutting Depth: 0-1/8" (0-3 mm)
- - Rabbeting Depth: 22 mm
- - Reversible, Self Adjusting Hard Metal
blades
- - 13,100 RPM, 1,200 W, 11.5 AMP, 13 Lbs
( 6 Kg)
- - Long Lasting Virutex made motor
- - Universal Dust collector Port
- Options
- - Micrometric Fence provides different
Grades of Chamfering
- - Heavy Duty Base with
Blade protector
__________________________________________________________________________
|

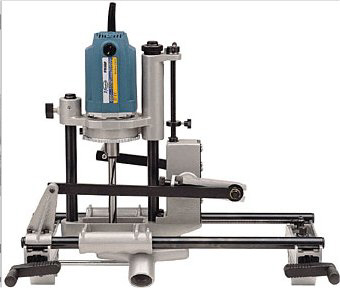

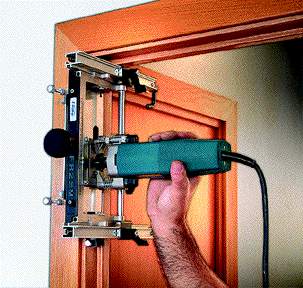

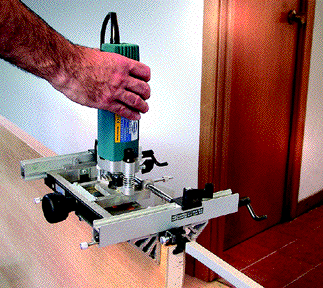

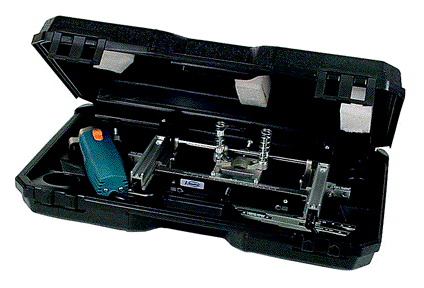

Door Hinge Router
(No template
required) |
|
Click to
Enlarge
|
Model FR29M
Temporarily
Dis-Continued. Watch for a new item soon
|
Description
FR29M enables you to make
recesses for rectangular hinges without using templates. The corner of
recesses will have radius of 1/4" for 1/2" bit, and 5/8" for 1-1/4" bit. For
hinges with square corner, optional accessory of 90º corner chisel item #RC29
can be used
Specifications:
110 V, 60Hz, 550 W,
30,000 RPM
Weighted Equivalent
Acoustic Pressure Level: 84.5 dB A
Usual Level of Vibration
(hand-Arm) < 2.5 m/S2
Chuck Diameter: 1/4"
Weight: 8.5 Lbs
|
Click to
Enlarge |
|
Corner Square Tool >>>>>>>>>>>>>>>
Item No. RC29 : Call for Quote
Blades: Call for Quote |
 |
