AFFORDABLE
EDGEBANDERS
Price List
|
DX 16
Semi-automatic Hot Air Edgebander
|
|
Sorry, no options available
DX 16
Semi-automatic Hot Air Edgebander:
$4,110.91
+ shipping by Freight Truck
|
|
DX 83
Semi-automatic Hot Air Edgebander
|
|
Sorry, no options available
DX 83
Semi-automatic Hot Air Edgebander:
$8,109.81
+ shipping by Freight Truck
|
|
CX 70
Glue-Pot Edgebander,
Straight or Contours
***CX-70 is NEW Part Number replacing the LX-70 (pictured)
The only difference is that
the control panel shown is mounted below on the machine.
|
|
***Roller Ball Table Top & Variable Speed Control now come
standard***
CX 70
Glue-Pot Edgebander,
Straight or Contours
Roller Ball Table Top & Variable Speed Control now come
standard: $9,982.95
+ shipping by Freight Truck
AVAILABLE OPTIONS: (6
TO 8 Week Lead-Time, Prices may change)
Automatic Rough End Trim Switch: $418.75
Adjustable Panel Hold Down: $1,285.70
Electronic Edge Counting Device: $2,870.40
|
|
CX 70
Glue-Pot Edgebander,
Straight or Contours
***CX-70 is NEW Part Number replacing the LX-70 (pictured)
The only difference is that
the control panel shown is mounted below on the machine.
|
|
Automatic Rough End Trim Switch: $418.75
Roller Ball Table Top: $678.50
Variable Speed Control: $898.80
Adjustable Panel Hold Down: $1,285.70
Electronic Edge Counting Device: $2,870.40
CX 70
Glue-Pot Edgebander,
Straight or Contours: $8,405.65
+ shipping by Freight Truck
|
|
RX
75
Glue-Pot Straightline Edgebander
|
|
RX
75
Glue-Pot Straightline Edgebander: $14,814.75
+ shipping by Freight Truck
|

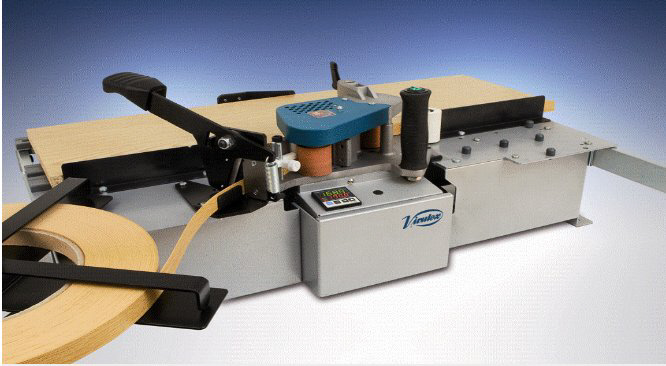

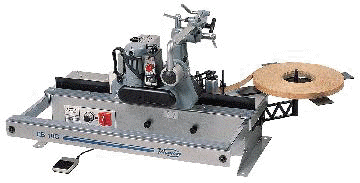

EB-10CF Bench Top Edgebander with Power Feed
|
|
Click to
Enlarge
|
-
Hot
Air Production
-
Bench
Mount Edgebander with Power Feed.
- Model
EB-10CF
QUOTE ONLY
Plus Shipping - $220.00 ($280.00
TX & west of Rockies)
-
REFERENCES MAY BE
AVAILABLE
IN YOUR AREA,
E-MAIL US
FOR A LIST
|
Bench mount Self-Feed production machine
Works
with straight or contour boards.
Great
for small shops.
-
*The Top & Bottom
motorized auto flush trim station
-
industrial
heater are the same as EB-25
*Can do contours if the trimming station is
removed.
* Max.
thickness of tape: 1.00 mm.
-
* Max. board thickness;
2.56"(65 mm).
-
* Min. board thickness:
7/16" . 0.43", (11 mm)
-
* No need for compressed air.
-
* Electronic temperature
control.
-
* Heats up to 900 Fº (
500Cº) in less than one minute.
-
* Auto end cut with 1/4"
extra end over hang
-
to be flush trimmed with RC21E.
|
-
* Foot pedal end cut for
contour panels.
-
* Min. degree of radius:
60º. Min. interior radius:1.25"(30mm).
-
* Max.: unlimited.
-
* Remove trim station
to band curved panels.
-
* Extended front fence will
hold large work and make it easy to move panel through the
machine.
-
* 220 V, 15 AMP, single
phase. Weight: 77 Pounds, 35 Kg.
-
* Dimensions:
23.6x37.4x17.0 inches ( 600x950x430mm)
|
EB-25 Stand Alone Edgebander with Power Feed
|
|
Click to
Enlarge
Add a Dust Collector Housing for $85.00
Add extra Drive Belt for $110.00
|
-
Hot
Air Production
-
with Power Feed.
- Model EB-25
$QUOTE ONLY$
-
Lift Truck $60.00 extra.
Plus Shipping - $285.00 ($340.00
TX & west of Rockies)
-
REFERENCES MAY BE
AVAILABLE
IN YOUR AREA,
E-MAIL US
FOR A LIST
|
- *Automatic, motorized
flush trim of top+bottom+ both ends of the board.
- *Technically advanced trimming by circular saw blades, not
routers.
- *No wood dust, no need for vacuum cleaners
- * High tension spring loaded Top+Bottom guide wheels
automatically self adjust the top+bottom flush trim blades according to thickness
variation of the board.
- * Front & back are cut by a pair of electromagnetic blade set
- * Hot air industrial grade production heater for pre-glued
tapes of PVC,
- Polyester, Melamine, and wood veneer of
up to 1.00 mm thick.
- * Minimum thickness of the board: 7/16" ,
0.43" (11 mm)
* Maximum thickness of the board: 2.56" (65 mm)
* No need for compressed air
* Electronic temperature control. Heats up to 1,000 Fº in
less than one minute.
* 220 Volts, 15 Amp, single phase.
* Power feeder (Industrial grade belt)
with constant speed ( on purpose) of 15
Feet per minute
* Net weight: 260 Pounds ( 117 Kg),
* Dimensions: 67.7x37.4x53.1 inches (1720x950x1350 mm)
* Can add casters with brake for easy moving in and
out of the shop
* Six months warranty for all spare parts
* Comes with a video showing how to set up, how to make
adjustments,
and how to change parts. No need for service
technician costs after
warranty period
* Unlimited technical support 9:00 AM to 5 PM, eastern
standard time
|

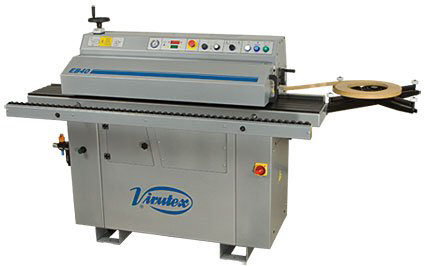

ALL NEW!!! EB-35 Stand Alone Edgebander with Power Feed
|
|
Click to
Enlarge
REFERENCES MAY BE AVAILABLE
IN YOUR AREA,
E-MAIL US
FOR A LIST
Add a Dust
Collector Housing for $85.00
Add extra Drive Belt for $115.00
|
-
Hot
Air Production
-
with Power Feed.
- Model EB-35
$QUOTE ONLY$
-
Lift Truck $60.00 extra.
Plus Shipping - $285.00 ($340.00 TX & west of Rockies)
**Flush trim and
beveled top & bottom
for standard 0.018" or 1, 2 & 3 mm pre-glued tapes
Flush end trim for up to 2 mm.
Manual end trimmer for 3mm tapes
|
- *Automatic, motorized
flush trim of top+bottom+ both ends of the board.
- *Technically advanced trimming by circular saw blades, not
routers.
- *No wood dust, no need for vacuum cleaners
- * High tension spring loaded Top+Bottom guide wheels
automatically self adjust the top+bottom flush trim
and bevel trim blades according to thickness
variation of the board.
- * Front & back are cut by a pair of electromagnetic blade set
up to 2mm.
*3mm is rough end cut only. 3mm hand end cutter is available.
* Final finish top & bottom trim with use of auto scrapers
* Hot air industrial grade production heater for pre-glued
tapes of PVC,
- Polyester,
Plastic Laminate, Melamine, and wood veneer of
up to 3.00 mm thick.
- * Minimum thickness of the board: 7/16" ,
0.43" (11 mm)
* Maximum thickness of the board: 2.56" (65 mm)* No need for compressed air
* Electronic temperature control. Heats up to 1,000 Fº in
less than one minute.
* 220 Volts, 15 Amp, single phase.
* Power feeder (Industrial grade belt)
with constant speed ( on purpose) of 15
Feet per minute
* Net weight: 300 Pounds ( 117 Kg),
* Dimensions: 67.7x37.4x53.1 inches (1720x950x1350 mm)
* Can add casters with brake for easy moving in and
out of the shop
* Six months warranty for all spare parts
* Comes with a video showing how to set up, how to make
adjustments,
and how to change parts. No need for service
technician costs after
warranty period
* Unlimited technical support 9:00 AM to 5 PM, eastern
standard time
|
|
XT
Trimming Station, Straight or Contours
|
|
Roller Ball Table Top: $1,069.20
Adjustable Panel Hold Down: $1,285.70
Pneumatic Flush End Trim Guillotine: $1,975.70
XT
Trimming Station, Straight or Contours: $6,588.56
+ shipping by Freight Truck
|
|

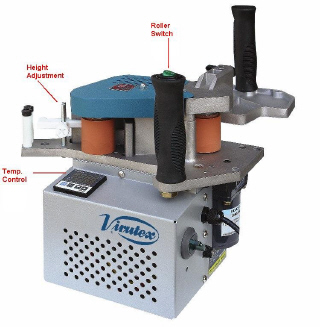

AG-98F HAND HELD PORTABLE EDGEBANDER
|
|
CLICK TO SEE
THIS TOOL IN ACTION
AG-98F HAND HELD PORTABLE EDGEBANDER
$408.00
|
Double Edge Trimmer and End Trimmer also pictured
but not included
Manual Hand-Held
Edgebander - AG98F
-
Adjustable rubber
clamps hug the board
& provide
accurate tracking of tape on the board
-
Most accurate
edgebander in its price range
- For pre-glued
PVC, Polyester, Melamine, and wood veneer of
- up to 2" wide (50
mm)
- A set of rubber clamps hug
the board so
you can get the most accurate tracking of
the tape on the board.
- Easy to adjust.
- Easy application on contour
edge banding.
- Minimum interior radius: 2"
- 2 step temp. switch:
- Step 1: 300º C or 570 Fº
|
|

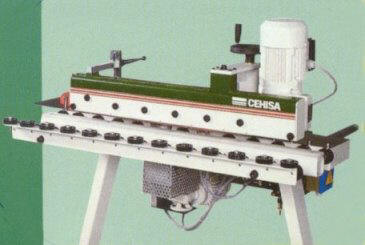

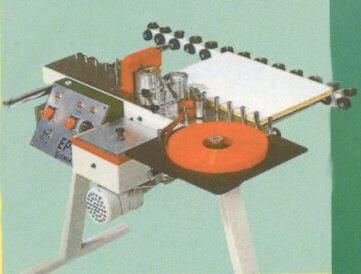

AD-EP-2S
CEHISA Edgebander |
|
Click to
Enlarge
|
-
Glue Pot
Production Edgebander
- Model
EP-2S
$
4,396.00
#AD-AR-1(Optional
Feeder)
$2,396.00
+ Shipping - Shipped Freight Collect
See our
HOT MELT GLUE
|
|
Ideal for small and medium shops with a
variety of edgebanding jobs and a limited budget. This heavy duty unit,
which requires almost no maintenance, has the advantage that the owner may
add the panel feeder AR-1 making it an automatic unit. This retro fit is
easily done by the customer. Uses regular hotmelt in granules giving an
excellent bond every time. Features automatic roll cutter. Works with
edgebanding in rolls such as PVC, veneer, polyester, etc. or with HPL and
wood strips up to 2mm. An optional quick melt glue pot, is also available.
|
|
PR25P-DV Automatic Production Pre-Gluer
Cost: $QUOTE ONLY$
+ Shipping by Freight Truck.
For pre-gluing edge banding
tapes, wood and plastic laminate
strips for use with hot air edge
banders. Low maintenance, hot melt pre-gluer for plastic or wood tapes
and laminate strips for use with hot air edge banders. It includes
themoelectric temperature
control, automatic start and stop of the feed motor. It automatically
controls the quantity of the glue applied to
the back of the tape and creates a constant density of the glue applied
on the tape.
|
|
 |
Specifications:
Minimum tape thickness: 1/64"
(0.4 mm)
Maximum strip thickness: 5/8"
(16 mm)
Maximum roll thickness for tape: 5/64" (2mm)
Maximum tape width: 4-3/32" (104
mm)
Feeding Speed: 33 feet per
minute
Glue tank capacity: 4.4 Lbs
Weight: 58 Pounds
Dimension: 9" x 16" x 22"
Input power: 1720 W
+ 120 W
Application rate:
160 to 200 grams of glue per square meter
The PR25P-DV has a
built in motorized winder with an adjustable pulling system which allows
the pulling force to be adjusted according to the thickness of the
edge tape. It also has a drying unit so that
the pre-glued edge can be re-coiled totally dried.
Optional ( 2545628 )
automatic winder kit converts the basic model PR25P into the automatic
PR25P-DV.
|
|
Optional (2545633) triple winder can triple production
capacity of the machine by pregluing 3 rolls of with the same thickness.
This option includes: 4 rell loading discs, 4 reel centering discs,
assembly and instruction manuals.
Optional (2545631) tdouble winder can double production
capacity of the machine by pregluing 2 rolls of with the same thickness.
This option includes: 4 reel loading discs, 4 reel centering discs,
assembly and instruction manuals.
|
Optional (2545632) support
for large rolls.
Ideal for 2 and 3 mm thick
edge rolls.
|
