VACUUM FRAME PRESSES
       call: 1 888 443 3461        2nd line: 1 920 863 3571          fax: 1 920 863 3570
       NEW HOURS   -    WE ARE NOW CLOSED FRIDAYS UNTIL FURTHER NOTICE.
*Urgent inquiries by e-mail will be accepted. No orders will be processed. Production and shipping for most items will continue as normal on Fridays.
Open 8am to 4:30pm central - Monday - Thursday    This site works best with Microsoft Internet Explorer©

S-3648          $1,981.00
39" x 50" Inside Dimension

S-4896         $3,242.00
50" x 99" Inside Dimension

Note:  "S" series are shipped with legs and stretcher bars removed, but are otherwise ready to use.

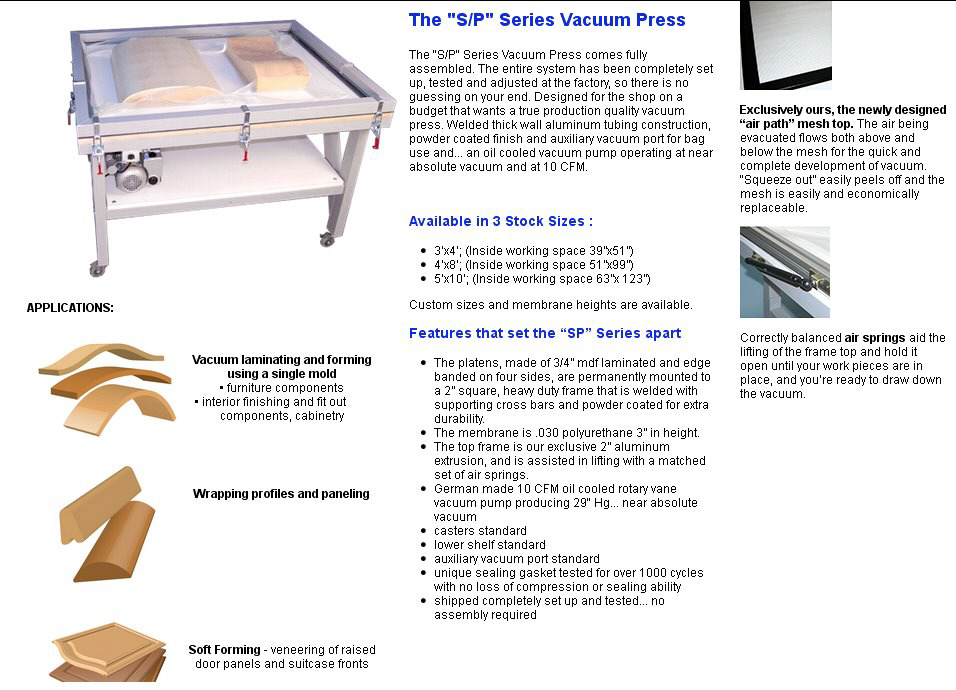

S-P-3648       $4,027.00
39" x 50" Inside Dimension

S-P-4896        $5,275.00
50" x 99" Inside Dimension

Note:  S-P series are shipped completely set-up ready to run and are equiped with a 8 CFM, 1 ATMOS., oil cooled rotary vane pump by Busch which is designed to run "full time".  110Vac, 7 AMPS

S-P/A-3648      $3,067.00
39" x 50" Inside Dimension

S-P/A-4896      $4,315.00
50" x 99" Inside Dimension

Note:  S/P-A series are shipped with legs and stretcher bars removed but with the air pump installed and ready to run.  The air pump is a three stage, Venturi type with automatic off-on sensors generating 8 CFM and 28" HG.  A compressor is required that can produce 12 CFM at 100 PSI.  No electricity is required.

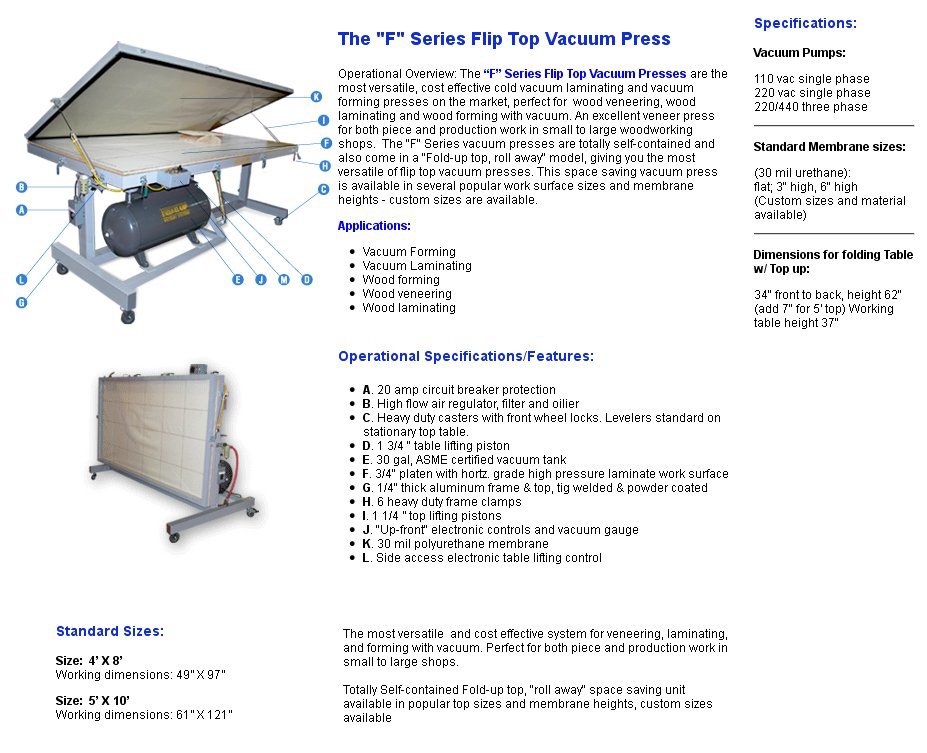

FP-8400         $11,114.50
50" x 99" Inside Dimension

FP-10050       $13,763.00
63" x 123" Inside Dimension

Note:  F series are shipped completely set up and factory tested.  A 16 CFM, 1 ATMOS, oil cooled rotary vane pump by Busch is standard equipment, 220 Vac, single phase, 12 AMPS, 100 PSI @ 5 CFM is required.

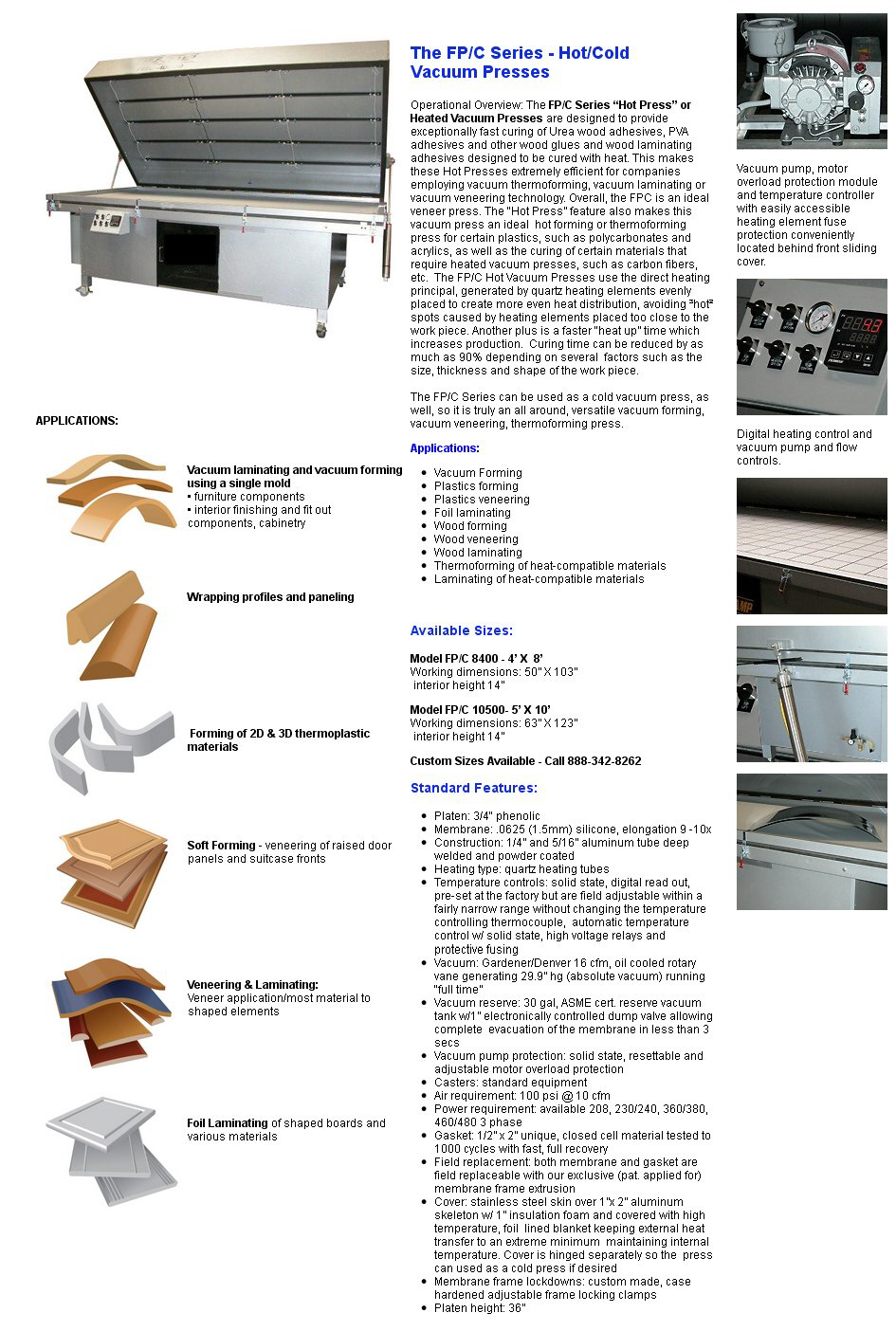

FP/C 800        $16,600.00
50" x 99" Inside Dimension

FP/C 1000      $19,675.00
63" x 123" Inside Dimension

Note:  FP/C series are designed to run at 75-80 degrees "C" for fast cure of PVA and UREA adhesives in addition to others.  Heating is created by 2 convection type fans and 9000 watts of heating to provide fast pre-heat times and even distribution of heat and fast cure times.  The membrane is .040 silicone resistant to 400+ degrees.  Vacuum is created with a Busch 16 CFM, 1 ATMOS, oil cooled rotary vane.  A 30 gallon receiver tank with a 1" dump valve for exceptionally fast evacuation of the  vacuum section of the press, 220 Vac, single phase, 30 AMPS; air requirement is 100 PSI @ 5 CFM.

Options
Casters (Standard on "F" and "FP/C" series                         $180.00

Auxiliary Vacuum Port (Not available on "FP/C" series      $410.00

TAPE-EASE  accepts credit card information by phone, fax or our secure e-mail.
We do not keep your Card info stored on our computer systems at all.
You can be assured that your information is safe with us.

        620 Green Bay Rd.      Denmark, WI 54208
920-863-3571 or 1-888-443-3461      fax: 1-920-863-3570
Open 8am to 4:30pm Central Monday - Friday
Pricing may change without notice, E-MAIL US or call for current information
©COPYRIGHT 1999 - 2011 Tape-Ease Veneers and Edgebandings.  All Rights Reserved. Unauthorized use or duplication prohibited.
