   PVC AND ALUMINUM TAMBOUR DOORS
       SORRY, DUE TO UNSTABLE MARKETS OUR PRICING MAY NOT BE CURRENT AT OUR WEB-SITE


POLY & ALUMINUM TAMBOUR DOOR SYSTEMS
Plastic parts now provided in Polypropylene. This is a more "Green" plastic material and more widely accepted in sensitive environments.
LIGHT DUTY (UP TO 55" width FOR VERTICAL OPERATING DOORS)
***FOR LARGER OR MORE SECURE DOORS, SEE:
Heavy Duty Roll-Up Aluminum Doors

PLEASE START HERE:
Welcome,
These products are sure to solve many headaches searching for the right Tambour Door System for your project. From Appliance Garages, to Utility Carts, to Cabinet Openings, the sky is the limit for these space-saving designs. We show 6 Tambour Door Designs below. Design 2 has an upper roll-up mechanism, it can be ordered as a Pre-Made Kit or parts can be quoted to be cut by the installer.

THESE DOORS HAVE MANY OPTIONS SO WE SUGGEST THAT YOU REVIEW THE INFORMATION BELOW THEN USE OUR QUOTE FORMS TO START DESIGNING YOUR DOOR.
PLEASE CONTINUE BELOW FOR QUOTING OR PARTS LIST.

Introduction:
This Tambour Door Line consists of 2 different slat styles that come in multiple colors shown below. The "E23" and the "ML" Lines are only used with the components marked respectively below. Now all of our 98" parts can be rough-cut for shipping to avoid UPS/FedEx High Cost Surcharges and some items are even sold by-the-foot as well. Larger orders will ship Freight Truck. We have Online Quote Forms for you to submit information needed for designing & quoting these doors. To get an idea of costs, you can go through the parts list below and see "Step 1" - "Step 2" etc. to pick out the components for your project. Aluminum accessories vrs. POLY Plastic can make a big difference in the total cost of your project. You
can save costs if you design your cabinet to hide the tracks and have a 2" top cover to hide where the door curves back into the cabinet. For help with track choices, see/print: TRACK APPLICATIONS Screws are not included for most items. If you are unsure where to begin feel free to send drawings or pictures to us for review and we can suggest the best options for you to get started.
E-MAIL US . Quoting can take up to 2 business days for this product. This product has cutting fees, $15.00 Packing Fee + Shipping per order.
Note:
If you know the parts you would like to order, you may use our [ORDER FORMS] or send in a Company PO.)
PLEASE CONTINUE BELOW FOR QUOTING & PARTS LIST.
E23 Line Slat Details
(Poly Colors)


Colors: White - Grey -
Black - Aluminum
(You can also paint these Poly colors
at your discretion, a polyurethane
or acrylic paint is suggested. Contact your
local paint professional or the paint
MFG for their recommendation.)

SLAT DETAIL
***Polypropylene Plastic***
EXAMPLES

Design 1 or 2                        Design 4 (2 Doors)
(ML/Aluminum Shown)
(ML/Stainless Steel Shown)
ML Line Slat Details
(
Aluminum Clad Slats)


Colors:
Aluminum - Stainless Steel

SLAT DETAIL

"Slats" refers to the main components that interlock
together to make up the Tambour Door. Our Slat
Styles are shown in cross-section views left & right.
The colors shown are all we have to offer. Please
continue below to our Designs and Full Parts List.




DESIGNS & QUOTE FORMS:
Our Designs shown here are to help you get started picking out the correct products for your
specific application. Please review, pick a design and continue to one of our quote forms.
Our full parts list is also show below.
(Your browser must be set to allow pop-up windows)

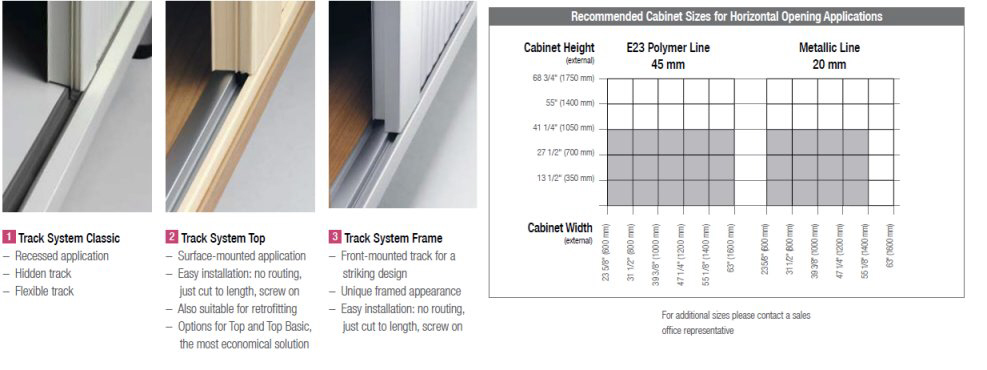

For help with track choices, see and print: TRACK APPLICATIONS
Installation instruction downloads:
[DESIGN 2 KIT INSTRUCTIONS]   [ALL OTHER DESIGNS INSTRUCTIONS]

PLEASE USE OUR QUOTE FORMS LINKED HERE FOR A QUOTE:  (Your browser must be set to allow pop-up windows)
QUOTE DESIGN 1 QUOTE DESIGN 2 QUOTE DES. 3 QUOTE DESIGN 4 QUOTE DESIGN 5 QUOTE DESIGN 6

OUR MOST POPULAR DESIGN
Manual Lifting with Straight Tracks and 90deg Corners.

Cut-to-size or order parts.
Can use false back in cabinet.
E-23 use Vertical Brake.
Spiral tracks available.

Maximum Sizes:
Up to 55" width
*Up to 42" tall

Special Order 1" Slat
Up to 60" width
*Up to 48" tall
(See Below)






GENERALLY AROUND $100 MORE PER UNIT THEN DESIGN 1

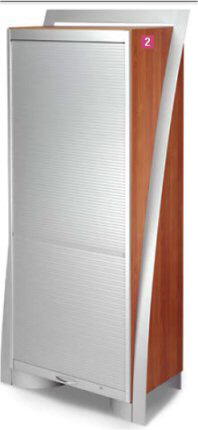

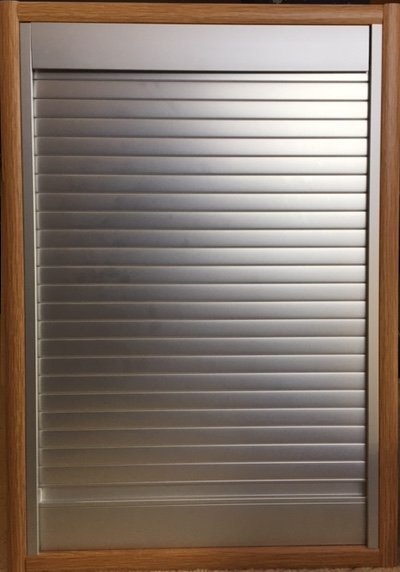

C3 Counterbalance Lifting System
Pre-Made Kits or order parts.
*Upper Mechanism requires 5  to 8" height and 11-1/2" depth
on top.

Face overlay or inset mounts
available.
For more options
see:
TRACK APPLICATIONS )

Available Sizes:
18-1/2"  to 51-1/2" widths

24" to 80-1/2" tall
[KIT INSTRUCTIONS DOWNLOAD]



CLICK EXAMPLES

Design 3
C6 ***Cut out picture to show the Budgie Cord that is hidden. Door
is installed like our Design 1.



C6 Counterbalance.
*Mainly used with Design 1 ML Line doors with locks to help prevent the door from slamming down. See more info and instructions below in Step 6.

Up to 55" width
*Up to 42" tall




 Manual Operating Horizontal or Vertical Operating with Spiral Track. 1 or 2 Doors
Cut-to-size or order parts.
Spiral requires 13-1/2" x 4-1/2"

Sizes per each door
Horizontal Maximum Sizes:
Up to (40" E-23) (44" ML) tall
Up to (64" E-23) (48" ML) wide
(1" ML Slat - 64" wide)
Flex Track recommended for Larger widths, See Design 6

Vertical Maximum Sizes:
Up to 60" tall
up to 32" Width


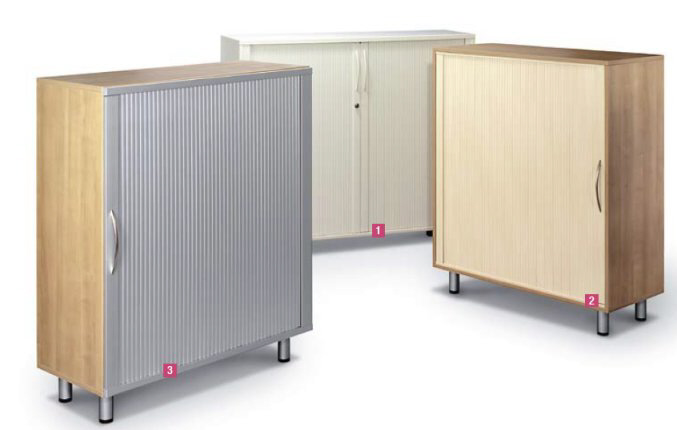

 Manual Operating Horizontal Operating with Straight Tracks and 90deg Corners.
1 or 2 Doors
Cut-to-size or order parts.

Sizes per each door
Horizontal Maximum Sizes:
Up to (40" E-23) (44" ML) tall
Up to (64" E-23) (48" ML) wide
(1" ML Slat - 64" wide)
Flex Track recommended for Larger widths, See Design 6

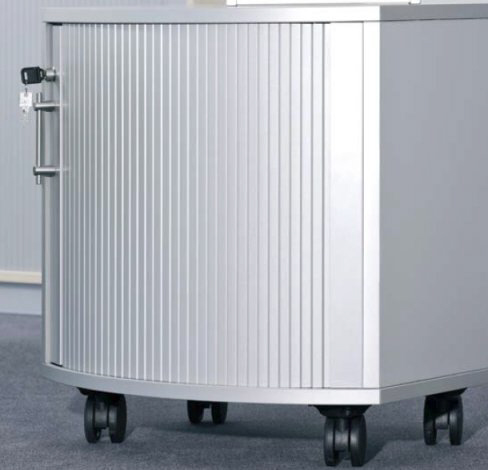

Manual Operating Horizontal or Vertical Operating with Flexible Inset Track.
Cut-to-size or order parts.

SEE TRACKS



CLICK EXAMPLE
CLICK EXAMPLES
QUOTE DESIGN 1 QUOTE DESIGN 2 QUOTE DES. 3 1 or 2 Doors can be used with style 4, 5 & 6 as Horizontal Operating Designs.
Max. size per door for Horizontal Applications are:
ML Line: 55" wide x 41" tall
E23 Line: 63" wide x 41" tall
QUOTE DESIGN 4 QUOTE DESIGN 5 QUOTE DESIGN 6

*Screws Not Included A trip to the hardware store may be in order after you receive your parts. Add $15.00 Packing Fee per order on this product.
POLY & ALUMINUM TAMBOUR DOOR SYSTEMS - PARTS LIST
STEP 1: SLATS

This is where you can review your quote for these doors or browse the available parts.
Note:
  Slats, Mid Grips, Handles, Fascia & Tracks are all 98 inches and need to be cut to fit. A fine tooth carbide blade on a miter saw works for cutting.


Product Pictures     Quantity Pricing Each
  Part # Description 1-19 20-59 60-149 150+

*E23 LINE

*E23 is all now Polypropylene Plastic.
*Can be Painted.
Rough cut for shipping at: 93", 49"/49", 65"/33" or custom.
PLEASE PROVIDE ROUGH CUTTING INSTRUCTIONS WITH ORDER
T792950-001 Tambour Slat Solid - PP - Grey E23 - 98" 9.85 9.57 9.30 9.03
T792950-002 Tambour Slat Solid - PP - White E23 - 98" 9.85 9.57 9.30 9.03
T792954-003 Tambour Slat Solid - Black E23 - 98" 9.85 9.57 9.30 9.03
T702758-002 Tambour Slat - PP - Printed Aluminum E23 - 98" 9.85 9.57 9.30 9.03
*ML LINE
PVC Aluminum Clad
Rough cut for shipping at: 93", 49"/49", 65"/33" or custom.
PLEASE PROVIDE ROUGH CUTTING INSTRUCTIONS WITH ORDER
T779270-001 Tambour Slat Aluminum ML
(appears  as Satin Polished Aluminum)  98"
10.24 9.92 9.60 9.28
T786172-004 Tambour Slat Stainless Steel, ML
(appears as Brushed Stainless)  98"
9.92 9.61 9.30 8.99
   *ML LINE
*Vertical Doors or Horizontal Doors-
We recommend on both ends of every slat.
T779894-001 Tambour Slat Glider, ML-Need 2 for each slat
Use with Aluminum and Stainless Steel ONLY
0.20 0.18 0.16 0.14
*ML LINE
*special order. Larger quantities by freight truck  SHIPPING or we can quote smaller orders with extra cutting fees FOR UPS SHIPPING.
T786065-001 Tambour Slat Aluminum ML
(appears  as Satin Polished Aluminum)  98"
11.55 11.23 10.92 10.59
T786065-003 Tambour Slat Stainless Steel, ML
(appears as Brushed Stainless)  98"
11.89 11.57 11.26 10.93


*ML LINE
25mm (1") Glider
T354331-001 Tambour Slat Glider, Right Side - ML- Need 1 for
 each slat - Use with 1" Aluminum and Stainless
 Steel ONLY
0.32 0.30 0.28 0.26
T354332-001 Tambour Slat Glider, Left Side - ML- Need 1 for
 each slat - Use with 1" Aluminum and Stainless
 Steel ONLY
0.32 0.30 0.28 0.26

 STEP 2: MID- GRIPS

MID-GRIPS: *Installed about half-way up the door to use as a handle on tall doors. Can also be installed above the locking handle for lifting the door or used as the handle itself for smaller doors. This part will travel around the 90deg corners. Part # Description 1-19 20-59 60-149 150+
*E23 LINE
Rough cut for shipping at: 93", 49"/49", 65"/33" or custom.
PLEASE PROVIDE ROUGH CUTTING INSTRUCTIONS WITH ORDER


T779920-002 Mid Grip Profile - Printed Aluminum
E23 - 98"
28.16 27.28 26.40 25.52
T702826-001 Mid Grip Profile - PP - Grey E23 - 98" 10.83 10.49 10.16 9.82
T702826-002 Mid Grip Profile - PP - White E23 - 98" 10.83 10.49 10.16 9.82
T702827-003 Mid Grip Profile - PP - Black E23- 98" 10.83 10.49 10.16 9.82
*ML LINE
Rough cut for shipping at: 93", 49"/49", 65"/33" or custom.
PLEASE PROVIDE ROUGH CUTTING INSTRUCTIONS WITH ORDER
T779930-001 Mid Grip Profile & Adapter -Aluminum ML -
(appears as Satin Stainless)
  98"
52.07 50.35 48.63 46.91
T793014-002 Mid Grip Profile & Adapter - Stainless Steel ML -
 (appears as Brushed Stainless)  98"
57.49 55.57 53.65 51.72
*ML LINE T779960-002 Mid Grip Profile Gliders-Grey ML-Left & Right-each 2.00 1.96 1.91 1.87

 STEP 3: HANDLES & ACCESSORIES
*NOTE - Some handle gliders will not travel around corners, see below.

  Part # Description 1-19 20-59 60-149 150+
*E23 LINE
Rough cut for shipping at: 93", 49"/49", 65"/33" or custom.
PLEASE PROVIDE ROUGH CUTTING INSTRUCTIONS WITH ORDER
T702828-001 Locking Handle Profile - PP - Grey E23 - 98" 29.84 28.91 27.98 27.04
T702828-002 Locking Handle Profile - PP - White E23 - 98" 29.84 28.91 27.98 27.04
T702831-003 Locking Handle Profile - PP - Black E23 - 98" 29.84 28.91 27.98 27.04
T702832-002 Locking Handle Profile - PP - Printed Aluminum E23 - 98" 29.84 28.91 27.98 27.04
*E23 LINE GLIDER T793238-001 Locking Handle Glider - PP - Black E23 - Left & Right-each
*This Glider will
travel around corners.
2.00 1.96 1.91 1.87
*E23 LINE GLIDER WITH BRAKE T702886-001
E23 only - each - PP - Vertical Brake Glider
(This also serves as a glider for the E23 Locking Handle Profiles)


*This Glider will
NOT travel around corners.
2.00 1.96 1.91 1.87
  Part # Description 1-19 20-59 60-149 150+

*E23 LINE AS PICTURED. ML LINE IS BASE ONLY.

*Cover and Handle Pictured.
*special order. Larger quantities by freight truck or we can quote smaller orders with extra cutting fees .
T779944-001
Frame Locking Handle Base - 98"  (Aluminum)
61.10 59.19 57.29 55.38
T702759-001 Frame Locking Handle Cover E-23 Grey - 98" 13.25 12.83 12.42 12.01
T702759-002 Frame Locking Handle Cover E-23 White -98" 13.25 12.83 12.42 12.01
T702759-003 Frame Locking Handle Cover E-23 Black -98" 13.25 12.83 12.42 12.01
T779964-002 Frame Locking Handle Cover E-23 Printed Alum - 98" 23.60 22.77 22.04 21.30
T779490-001 Frame Locking Handle Profile - One Piece -
Color: Aluminum
ML
(appears  as Satin Polished Aluminum)   98"
72.37 69.87 67.38 64.88
T793008-001 Frame Locking Handle Profile - One Piece -
Color: Stainless Steel ML -
(appears as Brushed Stainless)
98"
105.28 101.52 100.02 94.00
*E23 LINE T779884-001 Frame Locking Handle Glider - Black -
Each - Left & Right
*This Glider will NOT travel around corners.
2.00 1.96 1.91 1.87
T779884-004 Frame Locking Handle Glider - Grey -
Each - Left & Right
*This Glider will NOT travel around corners.
2.00 1.96 1.91 1.87
  Part # Description 1-19 20-59 60-149 150+
*ML LINE
*Sealing Profile Shown is attached and included.
Rough cut for shipping at: 93", 49"/49", 65"/33" or custom.
PLEASE PROVIDE ROUGH CUTTING INSTRUCTIONS WITH ORDER
T779480-101 Sealing Profile included.
Combo Grip Handle - One Piece - Aluminum ML -
(appears  as Satin Polished Aluminum)   98"
*ALSO - BY-THE-FOOT: $9.00/ft*
51.76 50.04 49.03 48.04
T793007-002 Combo Grip Handle -One Piece - Stainless Steel
 ML  - (appears as Brushed Stainless) 98"
*ALSO - BY-THE-FOOT:  $13.50/ft*
77.63 75.53 73.42 71.32
*ML LINE T779914-001 Combo Grip Handle Glider - Sold Each-
Left/Right Needed- Grey - ML
*This Glider will NOT travel around corners.
0.94 0.90 0.87 0.84
*ML LINE
 *4mm x 30mm Machine screws not included
*This can mount on the back of the door handle or elsewhere to provide a stop for your door.
T222918-001 Combo Grip Handle Stopper Profile 0.50 0.50 0.50 0.50
  Part # Description 1-19 20-59 60-149 150+
  T793025-001
Handle Profile - Pine Grey 2.5mm LG E9
37.28 36.12 34.95 33.79
  T793019-001 Handle Glider with Brake - Black each E9 1.23 1.19 1.16 1.12
*ML LINE
*No sealing profile is available. Can use weather-strip type product.
Rough cut for shipping at: 93", 49"/49", 65"/33" or custom.
PLEASE PROVIDE ROUGH CUTTING INSTRUCTIONS WITH ORDER
T779460-001 Locking Handle Profile - Aluminum ML
(appears  as Satin Polished Aluminum)   98"
61.74 59.61 57.48 55.35
T793006-001 Locking Handle Profile - Stainless Steel ML -
(appears as Brushed Stainless)  98"
101.70 98.20 94.69 91.18
*ML LINE T779904-001 Locking Handle Glider ML  (pair)
*This Glider will not travel around our corners.

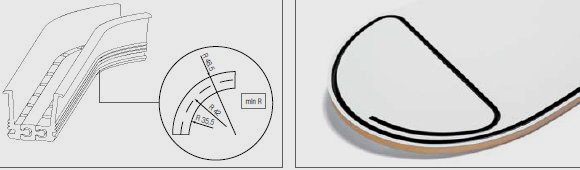

Min radius to travel around: 4" radius.
(Use flex track below in Step 5)
2.00 1.96 1.91 1.87
  Part # Description 1-19 20-59 60-149 150+

  *Screws Not Included STEP 4: FASCIA PROFILES *Screws Not Included

  Part # Description 1-19 20-59 60-149 150+
*E23 LINE
The matching colored surface is on the long side.
The barb can be cut off to install.
Rough cut for shipping at: 93", 49"/49", 65"/33" or custom.
PLEASE PROVIDE ROUGH CUTTING INSTRUCTIONS WITH ORDER
T779350-001 L-Shaped Cover Profile E-23 - Grey - 98" 19.82 19.20 18.59 17.97
T702822-002 L-Shaped Cover Profile E-23 - PP - White - 98" 19.82 19.20 18.59 17.97
T702824-003 L-Shaped Cover Profile E-23 - PP - Black - 98" 19.82 19.20 18.59 17.97
T702825-002 L-Shaped Cover Profile E-23 - PP - Printed Alum - 98" 22.16 21.47 20.78 20.08
  T779360-016 L-Shape Cover Profile E-23-Champagne - 98" 23.36 22.63 21.90 21.17
  Part # Description 1-19 20-59 60-149 150+
*E23 LINE
*Cover and Handle Pictured.
*Covers about 5/8" of the face frame at top.
*special order. Larger quantities by freight truck or we can quote smaller orders with extra cutting fees .
T793074-001 Frame Cover Profile Base for E-23 - 98" (Aluminum) 34.86 33.77 32.69 31.60
T779600-001 Frame Cover Profile Cover E-23 - Grey - 98" 13.78 13.35 12.92 12.48
T779600-002 Frame Cover Profile Cover E-23 - White - 98" 13.78 13.35 12.92 12.48
T779600-003 Frame Cover Profile Cover E-23 - Black - 98" 13.78 13.35 12.92 12.48
T779610-002 Frame Cover Profile Cover E-23 - Printed Alum - 98" 19.17 18.57 17.97 17.37
  Part # Description 1-19 20-59 60-149 150+
*ML LINE
Rough cut for shipping at: 93", 49"/49", 65"/33" or custom.
PLEASE PROVIDE ROUGH CUTTING INSTRUCTIONS WITH ORDER
T779650-001 L-Shaped Cover Profile Aluminum ML
(appears  as Satin Polished Aluminum) - 98"
*ALSO - BY-THE-FOOT:  $7.90/ft*
45.87 44.39 42.81 41.28
T793004-001 L-Shaped Cover Profile Stainless Steel ML
(appears as Brushed Stainless) - 98"
*ALSO - BY-THE-FOOT:  $12.70/ft*
73.63 71.09 68.55 66.01
  Part # Description 1-19 20-59 60-149 150+
*ML LINE
*Covers about 5/8" of the face frame at top.
*special order. Larger quantities by freight truck or we can quote smaller orders with extra cutting fees .
T793069-001 Frame Cover Profile Aluminum ML
(appears  as Satin Polished Aluminum)  - 98"
77.12 74.54 71.97 69.40
T793078-001 Frame Cover Profile Stainless Steel ML
(appears as Brushed Stainless) - 98"
101.60 97.97 94.34 90.71
*ML LINE
*special order. Larger quantities by freight truck or we can quote smaller orders with extra cutting fees .
T780674-001 Face Mounted Cover Profile ML
(appears as Brushed Stainless) - 98"
***SPECIAL ORDER - 3-4 WEEK LEAD-TIME***
98.82 95.19 92.00 88.58

 *Screws Not Included STEP 5: TRACK SYSTEMS  *Screws Not Included

For help with track choices, see: TRACK APPLICATIONS Part # Description 1-19 20-59 60-149 150+
*E23 OR ML LINE
Rough cut for shipping at: 93", 49"/49", 65"/33" or custom.
PLEASE PROVIDE ROUGH CUTTING INSTRUCTIONS WITH ORDER
(#4 Screws Recommended for mounting track)
T702823-001
Surface Mounted Basic Track -
Polypropylene Plastic -
Black - 98"
8.50 8.45 8.40 8.35
T702823-005 Surface Mounted Basic Track -
Polypropylene Plastic -
Silver Through- 98"
8.50 8.45 8.40 8.35
*E23 OR ML LINE (1-3/4" R) T779950-001 Surface Mounted 90° Basic Corner - Black 3.50 3.45 3.40 3.35
T779950-005 Surface Mounted 90° Basic Corner - Silver Through 3.50 3.45 3.40 3.25
For help with track choices, see: TRACK APPLICATIONS Part # Description 1-19 20-59 60-149 150+
*E23 OR ML LINE
*Cover and Handle Pictured
*special order. Larger quantities by freight truck or we can quote smaller orders with extra cutting fees .
T779550-001 Aluminum Frame Mounted Track Base - 98" 51.32 49.60 47.89 46.18
T779560-001 Frame Mounted Track Cover Aluminum ML
(appears  as Satin Polished Aluminum)  -98"
27.50 26.64 24.07 23.21
T793009-001 Frame Mounted Track Cover Stainless Steel ML
(appears as Brushed Stainless) - 98"
58.28 56.33 54.39 52.45
T779570-001 Frame Mounted Track Cover E-23 - Gray - 98" 10.00 9.69 9.38 9.06
T779570-002 Frame Mounted Track Cover E-23 - White - 98" 10.00 9.69 9.38 9.06
T779570-003 Frame Mounted Track Cover E-23 - Black - 98" 10.00 9.69 9.38 9.06
T702187-002 Frame Mounted Track Cover E-23 -
Polypropylene Plastic -
Printed Alum-98"
33.98 32.92 31.86 30.80
T793016-001 Frame Mounted Track Base ML - 98"
(This piece is special order and not used often)
76.09 73.37 70.66 67.94
*E23 OR ML LINE T793010-001 Frame Mounted Track Feed Component,
Left & Right-each
0.75 0.75 0.75 0.75
*E23 OR ML LINE T779980-001 Top/Frame/Surface Mounted Center Stop 0.75 0.75 0.75 0.75
*E23 OR ML LINE T779630-001 Frame Track End Caps E-23 - Black - 4pc 5.90 5.72 5.54 5.35
T779630-002 Frame Track End Caps E-23 - White - 4pc 5.90 5.72 5.54 5.35
T779630-003 Frame Track End Caps E-23 - Grey - 4pc 5.90 5.72 5.54 5.35
T779630-005 Frame Track End Caps - Silver Through - 4pc 6.74 6.53 6.32 6.10
For help with track choices, see: TRACK APPLICATIONS Part # Description 1-19 20-59 60-149 150+
*E23 OR ML LINE
*Cover and Track Base Pictured. The base comes in (2) colors: Aluminum & Stainless Steel

Rough cut for shipping at: 93", 49"/49", 65"/33" or custom.
PLEASE PROVIDE ROUGH CUTTING INSTRUCTIONS WITH ORDER
(#4 Screws Recommended for mounting track)
T779510-001 Aluminum Top Mounted Track Base - 98" 28.32 27.44 26.55 25.67
T793015-001 Stainless Steel Top Mounted Track Base - 98" 55.02 53.30 51.59 50.55
T779520-001 Aluminum Top Mounted Track Cover Aluminum ML
(appears  as Satin Polished Aluminum) - 98"
23.65 22.91 22.17 21.43
T793001-001 Aluminum Top Mounted Track Cover Stainless ML
(appears as Brushed Stainless)  - 98"
45.84 45.00 42.78 41.26
T779530-001 Top Mounted Track Cover E-23 - Grey - 98" 10.22 9.90 9.59 9.27
T702638-002 Top Mounted Track Cover E-23 - PP - White - 98" 10.22 9.90 9.59 9.27
T702641-003 Top Mounted Track Cover E-23 - PP - Black - 98" 10.22 9.90 9.59 9.27
T702186-002 Top Mounted Track Cover E-23 - PP - Printed Aluminum - 98" 10.22 9.90 9.59 9.27
*E23 OR ML LINE *Screws Not Included. This corner has tabs that also accept the Track Cover shown directly above attached to the aluminum track.
This comes in Black only, can be painted to match as well.
T779974-001 PVC Top/Frame/Surface Mounted 90° Corner - Black 3.50 3.45 3.40 3.35
CLICK  *E23 OR ML LINE
*More choices in "Recessed Track Section below

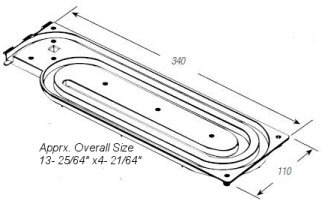

T779620-001 PVC Top/Frame/Surface Mounted Spiral Track -
4 way
(
Capacity is 49") Sold Per Piece -
2 Pieces Needed - Left & Right
6.50 6.45 6.40 6.35
For help with track choices, see: TRACK APPLICATIONS Part # Description 1-19 20-59 60-149 150+
*E23 OR ML LINE
Rough cut for shipping at: 93", 49"/49", 65"/33" or custom.
PLEASE PROVIDE ROUGH CUTTING INSTRUCTIONS WITH ORDER
T705925-001 Recessed Straight Track - Black -
Polypropylene Plastic - 98"
(Rout 1/2" Deep)
4.97 4.87 4.77 4.67
*E23 OR ML LINE T779690-001 Recessed 90° Corner - Black (Rout 1/2" Deep) 3.50 3.45 3.40 3.35
*E23 OR ML LINE T779710-001 Recessed Straight Track Center Stop-Black 0.35 0.33 0.30 0.28
  CLICK *E23 OR ML LINE

T779730-001 Recessed Spiral Track - 2 way-Black
(Capacity is 26", Rout 1/2" Deep)
(No Surface Mount is Available)   Sold Per Piece - 2 Pieces Needed - Left & Right
2.88 2.79 2.70 2.61

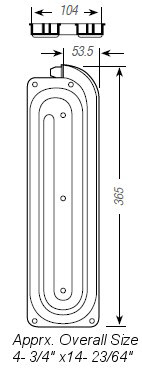

CLICK*E23 OR ML LINE T779750-001 Recessed Spiral Track - 4 way - Black
(Capacity is 51", Rout 1/2" Deep)   Sold Per Piece - 2 Pieces Needed - Left & Right
(Also available in Surface Mount shown above: T779620-001)
3.97 3.84 3.72 3.60

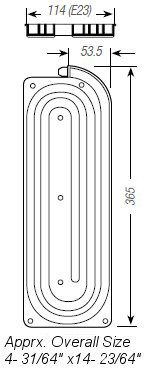

CLICK   *E23 OR ML LINE T779770-001 Recessed Spiral Track - 5 way - Black
(Capacity is 63", Rout 1/2" Deep)  Sold Per Piece - 2 Pieces Needed - Left & Right
(No Surface Mount is Available)
3.97 3.84 3.72 3.60
     *E23 OR ML LINE       CLICK
Rough cut for shipping at: 93", 49"/49", 65"/33" or custom.
PLEASE PROVIDE ROUGH CUTTING INSTRUCTIONS WITH ORDER

T779300-001 Flexible Recessed Track - 93" (Rout 1/2" Deep)
***We are stocking at 93" until further notice***
8.50 8.07 7.66 7.28
For help with track choices, see: TRACK APPLICATIONS Part # Description 1-19 20-59 60-149 150+

 STEP 6: ACCESSORIES

  Part # Accessories   Description 1-19 20-59 60-149 150+
*E23 OR ML LINE
 *
Lockset screws: #4 x 3/8” Flat Sheet Metal Not Included
(2) #T241971-001.
T700695-001 Tambour Door Lock - Keyed Alike 28.13 27.25 26.37 25.49
T700694-001 Tambour Door Lock - Keyed Different
***Used for single lock purchases
34.13 33.25 33.37 32.49
T289174-002 Replacement Key for Keyed Alike Locks
10 Key Minimum, 10 pc increments.
5.70
10 Key
Minimum
5.52 5.34 5.16
*E23 OR ML LINE
*S
crews Not Included
T779800-002 Bow Handle - 5" - Nickel Plated
Screws NOT included
9.28 8.99 8.70 8.41
T779810-002 Bow Handle - 8" - Nickel Plated
Screws NOT included
12.37 11.98 11.60 11.21
*E23 LINE (ML LINE NOT NEEDED)
 *
4mm x 20mm Machine screws not included.
*These are used for Bow Handles
T241971-001 Handle Hardware Mount Support
(need 2 per Bow Handle)
(Cut to fit required on some models)
0.46 0.45 0.44 0.42
*E23 OR ML LINE
*Used on the back of the slats once the door is assembled. This is required and installed 1" in from each end. Add more runs for wider doors. ***The ML Line requires you to press this in each cavity on the back of the slats.
T779390-002 Adhesive Tape - White - 181'/roll
Adhesive Tape - Black or Gray - 105'/roll

*ALSO - BY-THE-FOOT IN BLACK, WHITE OR GRAY:  $.43/ft*
29.87 29.10 28.66 27.80

 STEP 7: LIFTING SYSTEMS

Part # Counterbalances   Description 1-19 20-59 60-149 150+
  T241597-003 C3 Hardware Kit 11.40 11.24 10.21 9.11
*E23 OR ML LINE
Will fit opening sizes shown to right and will decrease up to 1" as well. *Can also be expanded using the Counter Balance Extensions shown below to accommodate all other sizes needed. Maximum is 46-1/2" exact opening width. C3 Hardware Kit above is Required.
T779310-001 C3 Counter Balance 16" in System (14-1/2" opening) 111.22 107.24 103.27 99.30
T779840-001 C3 Counter Balance 24" in System (22-1/2" opening) 108.72 104.84 100.96 97.08
T779850-001 C3 Counter Balance 32 in System (30-1/2" opening) 125.40 120.92 116.44 111.96
T223918-002 C3 Counter Balance 36" in System (34-1/2" opening) 131.70 126.99 122.29 117.59
T223919-002 C3 Counter Balance 42" in System (40-1/2" opening) 148.15 142.86 137.57 132.28
T223920-002 C3 Counter Balance 48" in System (46-1/2" opening) 162.50 156.69 150-89 145.09
*E23 OR ML LINE
Shown with C3.
*Can expand the C3 as shown above up to 6-1/2" more. These must be cut to fit your opening. Maximum is 51-1/2" exact opening width using extensions.
T779320-002 C3 Counter Balance Extensions 16.37 15.86 15.35 14.83
*ML LINE

*Mainly used with ML Design 1 doors that need extra help to close without slamming down. For ML Line doors with Locks & Locking Handle Profiles that add extra weight to the door. E23 Line Doors in this situation can use this system or the "Vertical Brake Glider" that is shown with the handle above in step 3. A false back or metal support is needed to attach the hook in the top rear of the cabinet. !TAPE EASE C6 Instr.doc
T779970-001 C6 Counter Balance 14.45 14.16 13.87 13.60
  T235420-001 C6 Counter Balance - Metallic Line Clip 0.24 0.23 0.23 0.22
*E23 LINE - ONLY USED IF VERTICAL DOOR OPENING FROM TOP DOWNWARD. T779640-001 Caddy Break System - Universal 4.69 4.54 4.40 4.25





[
CLICK HERE TO DOWNLOAD OUR ORDER FORM
]
e-mail: info@tapeease.com
(Please - no un-wanted solicitation e-mails will be accepted) (CLICK HERE TO MAKE SURE YOU RECEIVE OUR RESPONSE)

TAPE EASE SUPPLY LLC
accepts credit card information by phone or by our secure fax and e-mail services.
We do not keep your Card info stored on our computer systems. You can be assured that your information is safe with us.

          PO Box 816      Denmark, WI 54208
920-863-3571 or 1-888-443-3461      fax: 1-920-863-3570 (If faxing, follow-up with an e-mail to confirm receipt)
PLEASE NOTE: AT TIMES WE DO HAVE LIMITED PHONE SUPPORT, USING OUR FORMS OR E-MAILING IS USUALLY BEST
Open 8am to 4:30pm central time - Monday - Thursday
 (Sales office closes at Noon on Fridays)
Pricing may change and if so, you will be notified before your order is processed,
E-MAIL US with any questions.
©COPYRIGHT 1999 - 2021 TAPE-EASE SUPPLY LLC.  All Rights Reserved. Unauthorized use or duplication prohibited.
