HEAVY DUTY ROLL-UP ALUMINUM DOORS

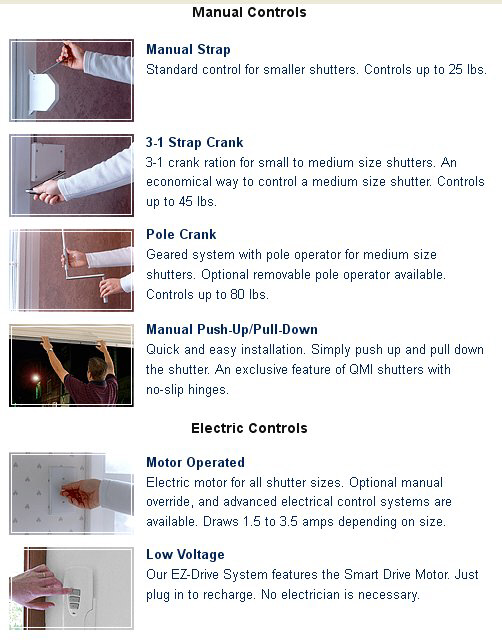

Aluminum Roll-Up Shutter Curtains & Custom Fit Secure Tambour Doors shown below respectively. Send us your requirements *Lifting Systems required 6" to 12" Square Headroom above opening depending on the door height.

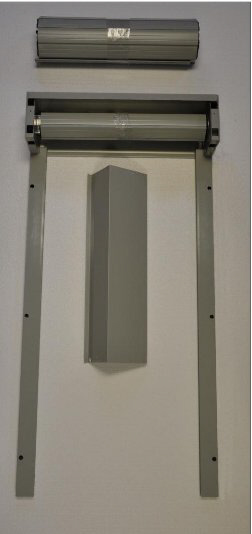

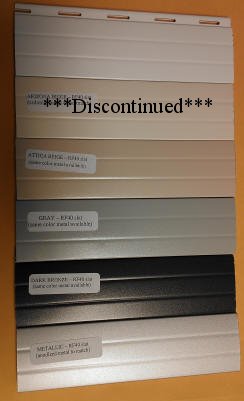

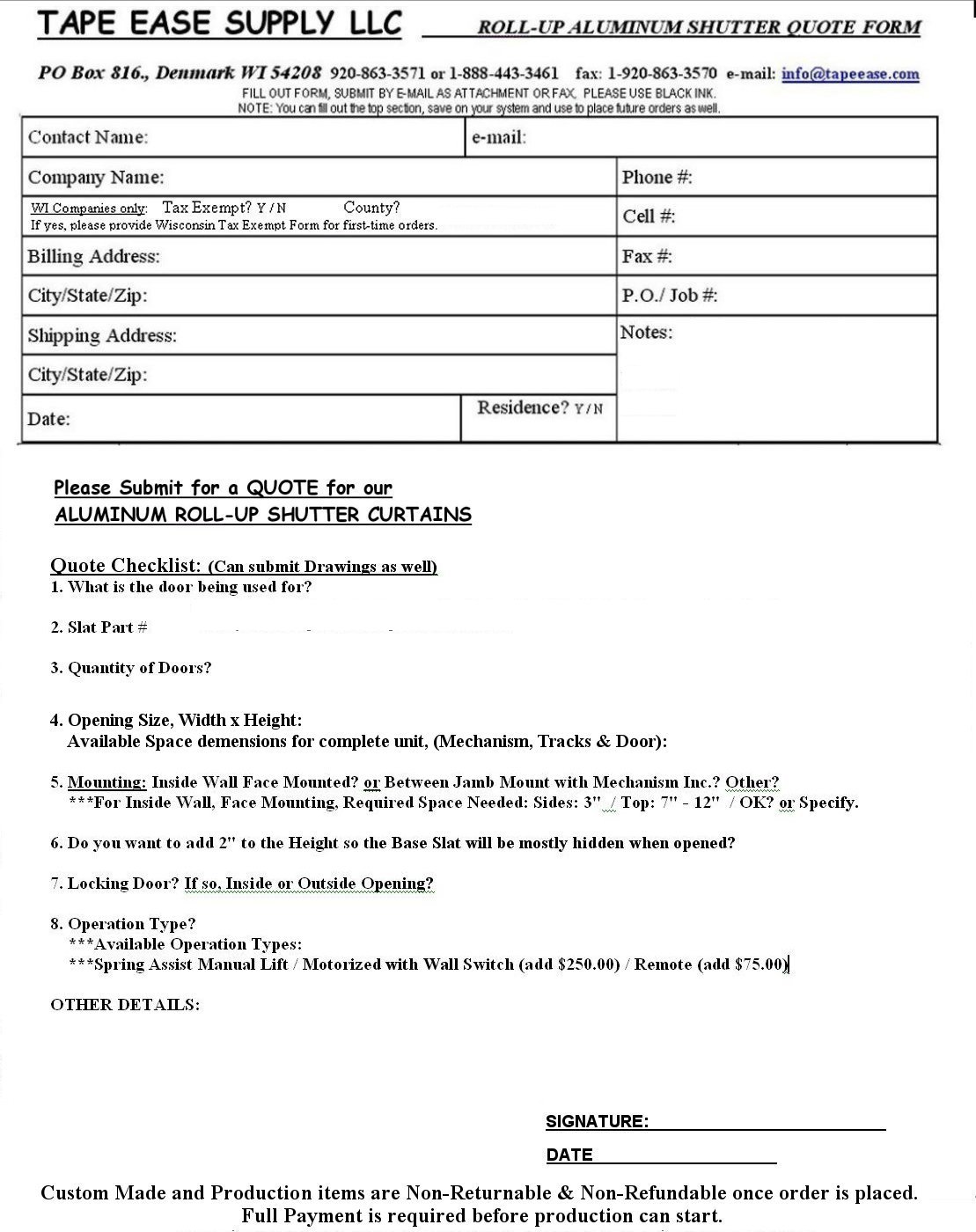

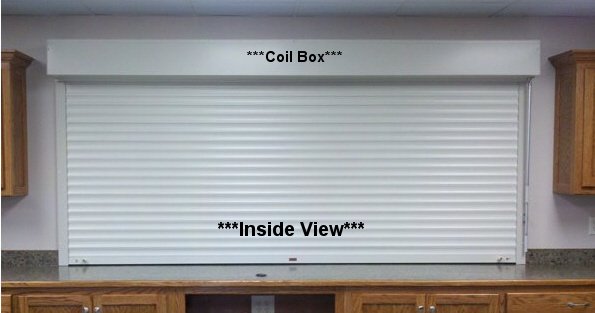

Our most popular Colored Slat: RS-RF40: 1-1/2" Aluminum double wall slat. RS-RF55: 2-1/4" Aluminum double wall slat. 6 colors, with insulation. Colors from top: White, ~~Arizona Beige~~, Attica Beige, Gray, Dark Bronze & Metallic. (Arizona Beige Discontinued) Side View Overall Outside Dimensions including Hook: 1-7/8" x 5/16" ***More slat choices shown below	ALUMINUM ROLL-UP SHUTTER CURTAINS Inside or "coil side" view shown for this installation Sizes up to 144" x 84". send us your requirements* Lifting Mechanisms Required 6" to 12" Square Headroom above opening depending on the door height. 3" of space is also needed on each side for inside wall face mounting. You can add 2" to the height if you would like the base slat to be mostly hidden when the unit is fully open. Inside the jam mounting is also available. Custom installs are our specialty!!! (see quote info below) Wall Switch Motorized Operation Available - & Remote Operation available all hidden within the box enclosure. Parts as Shipped (Click) Aluminum Roll-Up Shutter Curtain The EX40 or RF40 are mainly used for smaller doors. EX60 & others shown at bottom are used for larger doors. Use this Printable Quote Form or Checklist just below: PLEASE ENLARGE FIRST BEFORE PRINTING* Standard Portrait version. Please submit you're complete contact and shipping information as well by e-mail or fax. We will return the quote asap.	Our most popular Aluminum Slat: RS-EX40: 1-1/2" Aluminum Single wall slat. Side View Overall Outside Dimensions including Hook: 1-3/4" x 5/16" *More Slat choices shown at bottom of page for Larger Shutter Curtains* Larger Doors will use EX60 shown at bottom of this page and please note the EX60 is now available in most of the colors shown to the left for the "RF" Series.
Please Submit for a QUOTE for our ALUMINUM ROLL-UP SHUTTER CURTAINS Quote option #2: E-MAIL US Please include all of this for a quote. COPY and PASTE into your e-mail request.... Please Send Pictures and Drawings as well. Quote Checklist: (Can submit Drawings as well) 1. What is the door being used for? 2. Slat Part # and Color? 3. Quantity of Doors? 4. Exact Opening Size, Width x Height. 5. Mounting: Inside Wall Face Mounted? or Between Jamb Mount with Mechanism Inc.? Other? **For Inside Wall, Face Mounting, Required Space Needed: Sides: 3" / Top: 7" - 12" / OK? or Specify. 6. Do you want to add 2" to the Height so the Base Slat will be mostly hidden when opened? 7. Locking Door? If so, Inside or Outside Opening? 8. Operation Type? Available Operation Types: Spring Assist Manual Lift MOTORIZED OPTIONS AVAILABLE: (22.25" wide in the absolute minimum width for motorized doors) Motorized with Interior Grade Paddle Wall Switch (add $250.00) Motorized with Interior Grade Keyed Wall Switch (add $285.00) Motorized with Exterior Grade Keyed Wall Switch (add $350.00) Motorized with Exterior Grade Key Pad Switch (add $350.00) *Motorized with Remote Control (add $425.00) OTHER DETAILS INC BILLING & SHIPPING ADDRESSES:


Our most popular Colored Slat: RS-RF40: 1-1/2" Aluminum double wall slat. 6 colors, with insulation. Quieter operation. Min Depth required: up to 38" height: 6" up to 60" height: 7" Colors from top: White, Arizona Beige, Attica Beige, Gray, Dark Bronze & Metallic Side View* Overall Outside Dimensions including Hook: 1-7/8" x 5/16" ***More slat choices shown below	SECURE TAMBOUR CABINET DOORS *STRAIGHT OR CURVED RAILS* SEE QUOTE INFO BELOW...... Custom designs welcome. Send in you're drawings! Quote info below... Maximum width is 80" and max height is 60". Minimum width is 23". Doors can only operate vertically as shown. Horizontal sliding is not available. Minimum Radius on custom track bends is 4" inside radius. Only our EX40 & RF40 Slats can be used with curved tracks. These doors MUST HAVE a spring assist mechanism and space for it. Sound board covers need a minimum of 6" height at the front. SECURE CABINETS LOCKING SOUNDBOARD COVERS SORRY, DARK BRONZE COLORED BASE SLAT HANDLES ARE DISCONTINUED FOR CABINETS WITH CURVED RAILS- PROVIDING WITH ALUMINUM ONLY 1-1/8" Track for Heavy Duty Tambour Doors *Will bend to you're specs. 4" minimum inside radius. Click: [SECURE TAMBOUR DOOR INSTALLATION INSTRUCTIONS] Please Start just below for a QUOTE SECURE TAMBOUR CABINET DOORS: Please include all below information for a quote.	Single wall slat. Our most popular Aluminum Slat: RS-EX40: 1-1/2" Aluminum Noisier operation. Min Depth required: up to 50" height: 6" up to 60" height: 7" Side View Overall Outside Dimensions including Hook: 1-3/4" x 5/16" **More Slat choices shown below for Larger Shutter Curtains

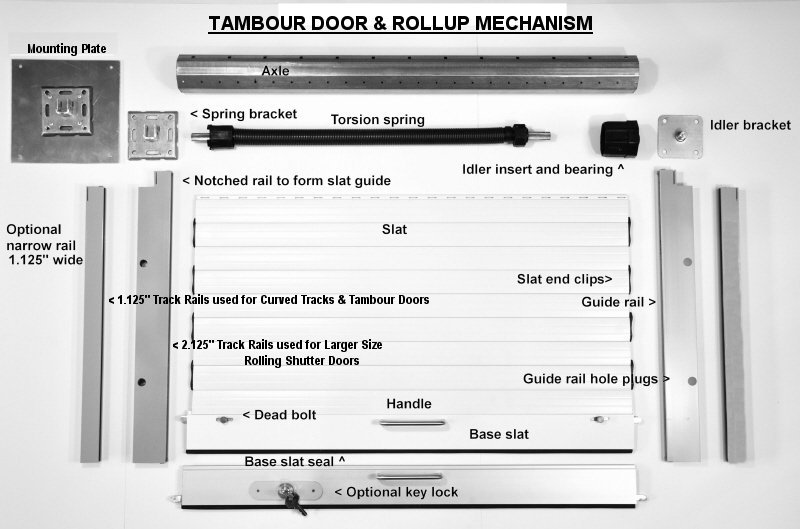

Click to see the Mechanism recommended for our Secure Tambour doors
Please include all below information for a quote. COPY and PASTE into your request.... Please Send Pictures or Drawings if possible. Heavy Duty Tambour Door Quote Checklist: E-MAIL US 1. What is the door being used for? 2. Slat Part #. RF40 or EX40 and Color? 3. Exact Size Opening Width x Height & Cabinet Depth? (These dimensions shall include the Door, Tracks & Space for the Mechanism) 4. Quantity of Doors? 5. Locking Door? 6. Tambour Door Must Have Spring asst. Mounting Spring at top front, top rear or other? (Submit Drawings) 7. Is the door covering just the front or the top also? 8. Do you require an upper fascia matching cover to hide track curves and/or the mechanism? 9. MOTORIZED OPTIONS AVAILABLE: (22-1/4" minimum width) Motorized with Interior Grade Paddle Wall Switch (add $250.00) Motorized with Interior Grade Keyed Wall Switch (add $285.00) Motorized with Exterior Grade Keyed Wall Switch (add $350.00) *Motorized with Remote Control (add $425.00) 10. Shipping & Billing addresses. OTHER DETAILS:

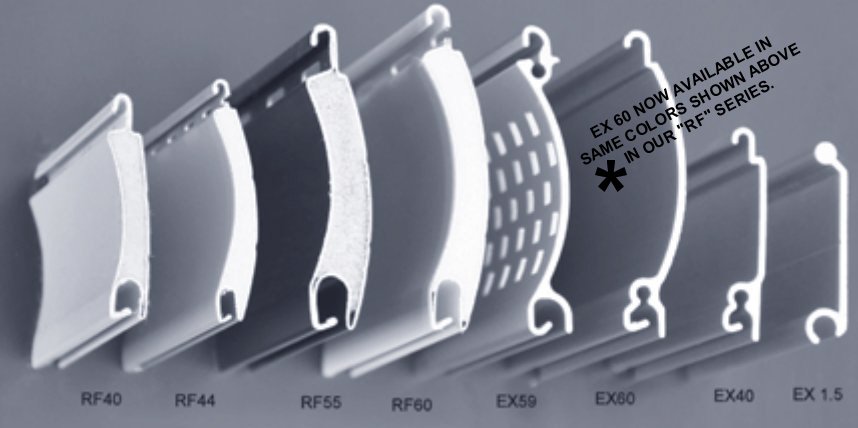

OUR FULL SELECTION OF SLATS IS SHOWN HERE. OUR SMALLER TAMBOUR DOORS WILL MAINLY USE THE RF40 or EX40. EX1.5 CAN ALSO BE USED BUT DOES NOT PERFORM AS WELL MECHANICALLY, AS THE EX40
