ML - DESIGN 2 - TAMBOUR DOOR KITS - QUOTE FORM STEP 2.

ML LINE
Real Aluminum in Colors

ML LINE STEP 2
In this step you will decide if you will be going with one of our
Standard Size Kits with Standard Parts, or, go with a Custom Kit.
*Custom Kits will have added cost for custom sizing.

DESIGN 2 Parts as shipped.

***SO FAR, YOU HAVE CHOSEN DESIGN 2 & ML LINE***

ML Line now is all provided with a Polypropylene backer. This is a more "Green" plastic material and more widely accepted in sensitive environments.
ML LINE STEP 2
Choose Standard Parts/Sizes (Left)     <>      or Custom Parts/Sizes (Right)

 ML Line - Standard Size Kits with Standard Parts - Review
*ALL PRE-CUT TO ONE OF OUR STANDARD OPENING SIZES*

 ML Line - Custom Size Kits or with Custom Parts - Review
*PRE-CUT OR YOU CAN CHOOSE TO CUT IF NEEDED SOONER*
After this step you will be able to pick all the options for your Standard Kit.
Please see the Standard Kit information below to determine if you will
be using a Standard Kit or will need a Custom Kit to the right.
Note: If you're door needs a Lock, you must choose the Custom Kit to right.




Our Standard Sizes are shown here. Please note "Opening sizes needed".
This is the opening required for the complete kit to fit into. You may cut down the height to a specific size after you get the standard kit but the width cannot be altered. If you cannot make your cabinet to fit any of these sizes, you will need to get a Custom Kit to the right.
REVIEW STANDARD OPENING SIZES HERE:

Click Dropdown to see our Standard Kit Widths:

Click Dropdown to see our Standard Kit Heights:



ML Line Standard Parts:
ML Line Standard Handle

*Used at the bottom of the door for lifting



ML Line Standard Kit Track options:
A5
     or A3
*Top view of track and 3/4" vertical cabinet side shown. Can also be referred to as (A5 Face Mount) or (A3 Inset Mount) Both of these options will be available for a Standard Kit in the next step.


After this step you will be able to pick all the options for your Custom Kit.
Please see the Standard Size Kit information to the left to determine
if you will need a Custom Kit.


ML Line Custom Kit size options:  (Sizes refer to your cabinet opening)
Minimum Width: 13-1/2"   -   Minimum Height: 18"
Maximum Width: 51-1/2"   -   Maximum Height: 80-1/2"
Note: We will only provide Pre-Cut Kits up to 46-1/2" width. Design 2 doors
over 46-1/2" opening sizes must be cut by the installer.

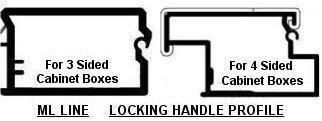

ML Line Custom Kit Handle options:

Lock
*Used at the bottom of the door.


ML Line Custom Kit Track options:

A5
     or A3
*Our 2 most popular Track options.
*Top view of track and 3/4" vertical cabinet side shown. Can also be referred to as (A5 Face Mount) or (A3 Inset Mount) Both of these options will be available for a Custom Kit in the next step. More Track options are also available. See TRACK APPLICATIONS or continue for more information.


More available Custom Options in the next step:
LOCKS - BOW HANDLES - MID-GRIPS
